RAPID is a programming language used to program ABB industrial robots. It's designed for creating the complex movements and tasks the robot has to perform. This is a basic guide to RAPID syntax:
1. Comments
Comments in RAPID start with the ! symbol and continue to the end of the line.
2. Variables and data types
RAPID supports various data types, such as num (numbers), bool (Boolean values), string (strings), pose (positions) and others.
3. Procedures and functions

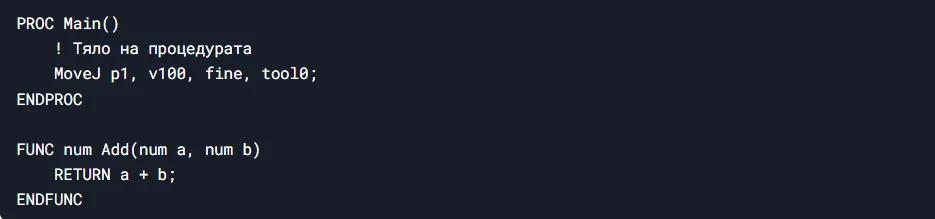

Procedures and functions are defined with the keywords PROC and FUNC respectively.
4. Movements
RAPID supports various types of motion, such as MoveJ (joint motion) and MoveL (linear motion).
5. Conditional statements

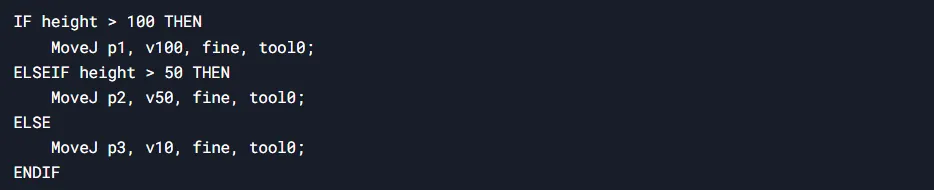

RAPID supports the standard conditional statements IF, ELSEIF and ELSE.
6. Loops

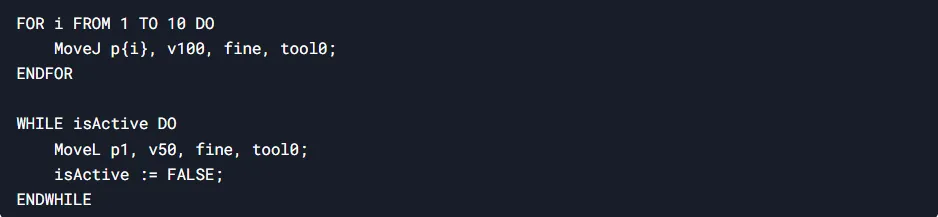

RAPID supports FOR and WHILE loops.
7. Arrays
Arrays are declared and used as follows:
8. Calling procedures and functions

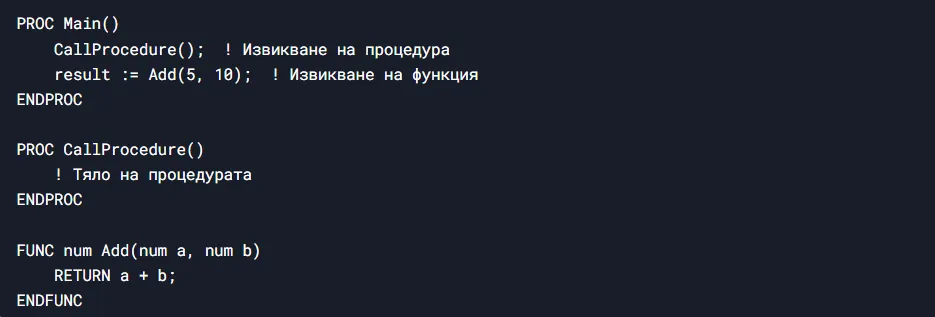

Procedures and functions are called as follows:
9. Working with tools and coordinate systems

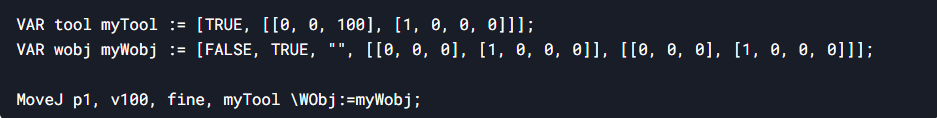

RAPID lets you define and use tools (tool) and coordinate systems (wobj).
10. Error handling

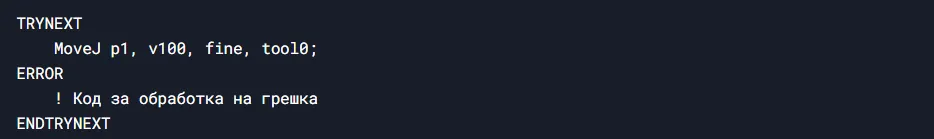

RAPID supports error handling mechanisms via TRYNEXT and ERROR.
11. Modules and including files
RAPID programs can be divided into modules, which are included with MODULE.
12. System variables and functions

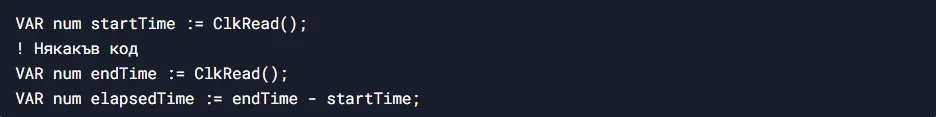

RAPID provides access to system variables and functions, such as ClkRead() for time measurements.
13. Working with I/O
RAPID allows control of input/output signals via SetDO, SetGO, WaitDI and others.
14. Multitasking
RAPID supports multitasking, which allows several tasks to run at the same time.
15. Ending the program
The program ends with ENDMODULE or ENDPROC.
