ROKAE
IP54
Collaborative robots

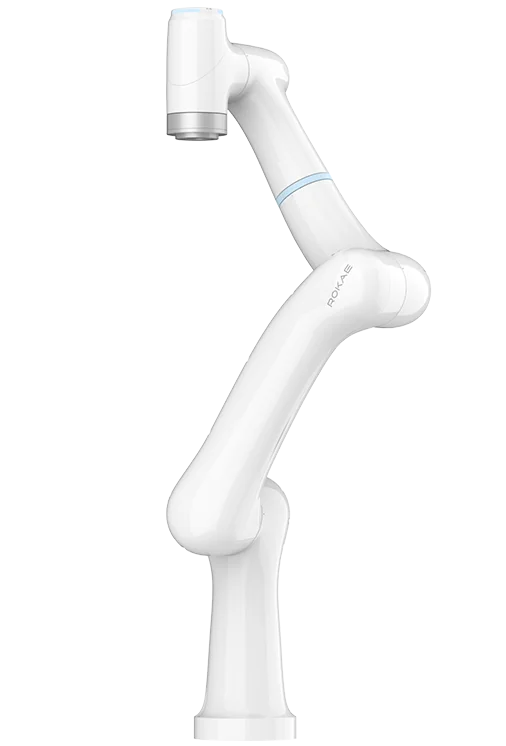

ROKAE SR5-5/0.9C
ROKAE collaborative robot with 5 kg payload and 919 mm reach.
- Payload
- 5 kg
- Reach
- 919 mm
- Axes
- 6
- Repeatability
- ±0.03 mm
- Handling
- Assembly
Not sure it's the right fit? Help me choose
Technical data
| Category | Collaborative robots |
|---|---|
| Brand | ROKAE |
| Payload | 5 kg |
| Reach | 919 mm |
| Axes | 6 |
| Repeatability | ±0.03 mm |
| Protection | IP54 |
| Weight | 16.5 kg |
| Mounting | Floor, Ceiling, Wall, Tilted |
| Next to people | Yes, no fence needed |
| Power supply | 48 VDC V |
| Controller | LightCab |
| Applications | Handling, Assembly |
How big is the work area
The red arc shows how far the arm reaches — to scale next to a person (1.75 m) and a euro pallet.
Description
ROKAE SR5-5/0.9C is a lightweight collaborative robot from the xMate SR series with force sensing and the compact LightCab controller (48 VDC). It can be mounted at any angle.
Payload 5 kg, reach 919 mm, 6 axes, repeatability ±0.03 mm, IP54 protection.
Artec Robotics supplies, integrates and commissions ROKAE robots. Contact us for a quote.
