ABB
IP67

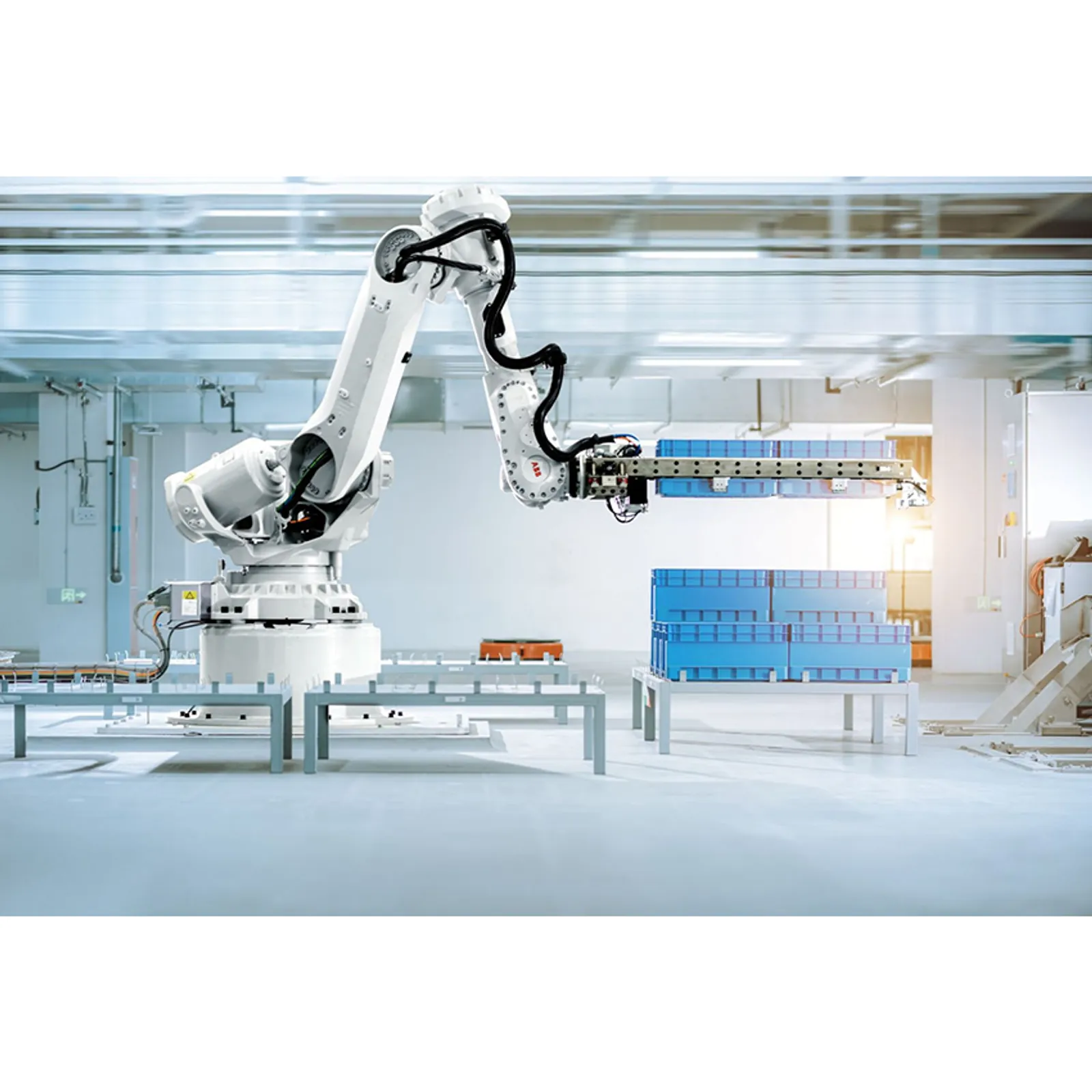

ABB IRB 6700-200
ABB industrial robot with 175 kg payload and 2600 mm reach.
- Payload
- 175 kg
- Reach
- 2,600 mm
- Axes
- 6
- Repeatability
- ±0.05 mm
- Handling
Not sure it's the right fit? Help me choose
Technical data
| Category | Industrial robots |
|---|---|
| Brand | ABB |
| Payload | 175 kg |
| Reach | 2,600 mm |
| Axes | 6 |
| Repeatability | ±0.05 mm |
| Protection | IP67 |
| Next to people | Behind a fence or light curtain |
| Mounting | Floor, ceiling |
| Weight | 1710 kg |
| Applications | Handling |
How big is the work area
The red arc shows how far the arm reaches — to scale next to a person (1.75 m) and a euro pallet.
Description
ABB IRB 6700-200 is a heavy-duty ABB 6-axis robot with a 2600 mm reach and ±0.05 mm repeatability, built for demanding production environments.
Compared with its predecessor it has a stiffer structure, modern motors and compact gearboxes, easier maintenance and around 15% lower energy use. The arm is IP67-rated and can be mounted on the floor or ceiling.
Suited to applications that need high payloads and high accuracy.
Contact us for a quote, integration and commissioning.
